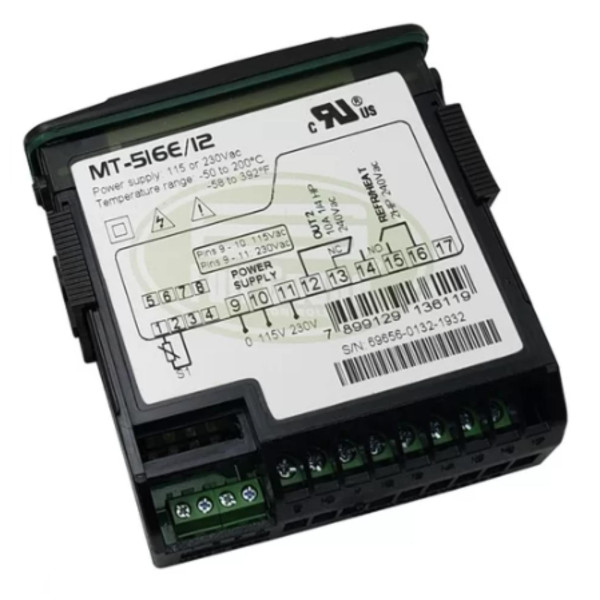

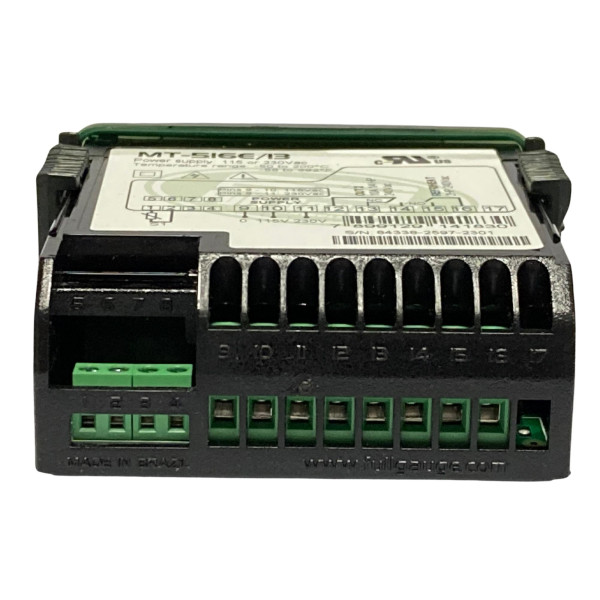

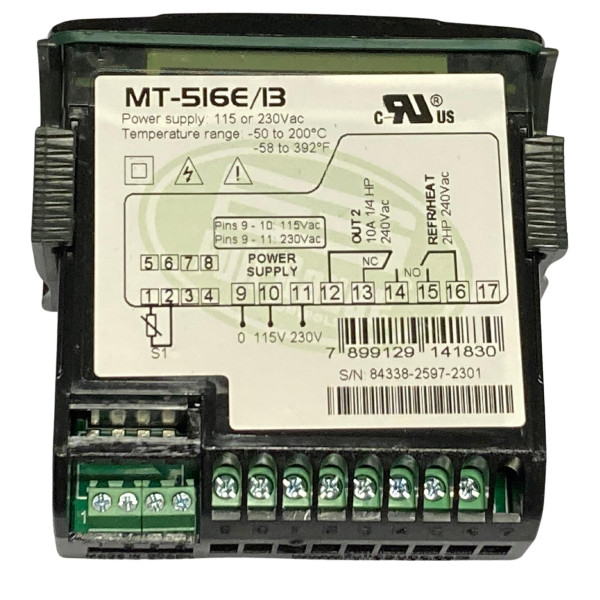

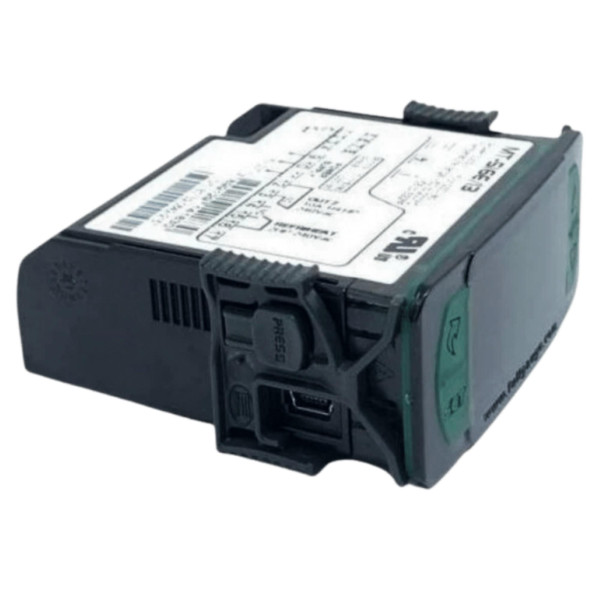

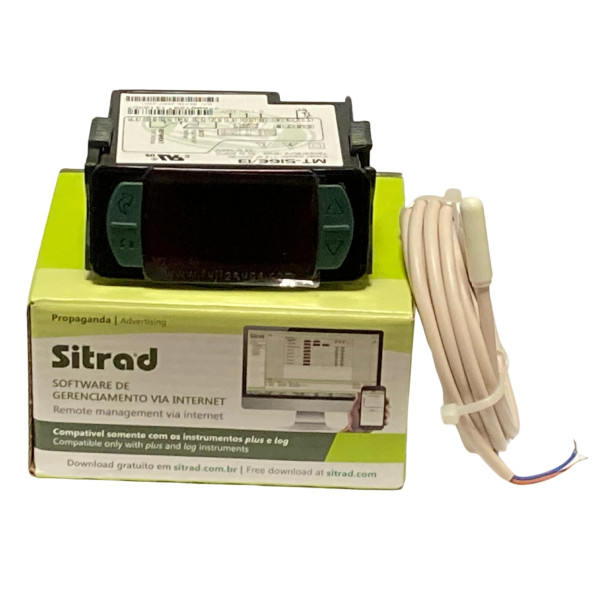

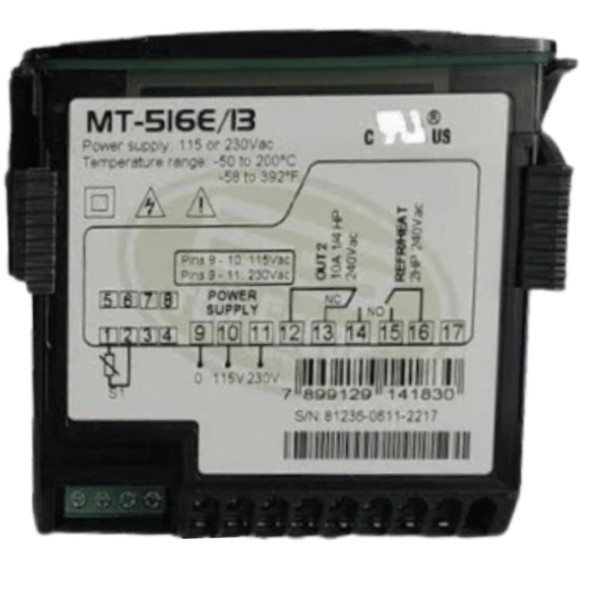

Full Gauge MT-516E Electronic Control Temperature 2 Stages 110/220V (Replaces MT-518Ri / MT-516Ri)

DIGITAL TEMPERATURE CONTROL WITH CONFIGURABLE 2nd STAGE

MT-516e is a temperature controller for cooling or heating applications. Equipped with a cyclic timer output, it can also be used as alarm output, with the option of an internal audible alarm (buzzer), or second cooling or heating stage. Another feature available is the turning off of the control functions, making the MT-516e operate only as a temperature meter. Through an intelligent function blocking system, it prevents unauthorized personnel from changing the control settings. Product conforming to ULInc. (United States and Canada).

TECHNICAL SPECIFICATIONS:

Power supply: 115/230 Vac ±10% (50/60 Hz)

Control temperatura: -58F a 221F / -50C a 105C

Operating temperatura: 32F to 122F / 0C to 50C

Current output:

OUT1: 16(12)A / 240Vac 2HP

OUT2: 10A / 240Vac 1/4HP

Operating humidity: 10 to 90% UR (non-condensing)

Dimensions (mm): 76 x 34 x 77 mm (WxHxD)

Dimensions of the clipping for fixing of the instrument: 71 +/-  0,5 x 29 +/- 0,5 mm (see item 5)

Alarm

Buzzer

Cyclic Timer

Functions Lockdown

Control Functions Shutdown

Serial programming

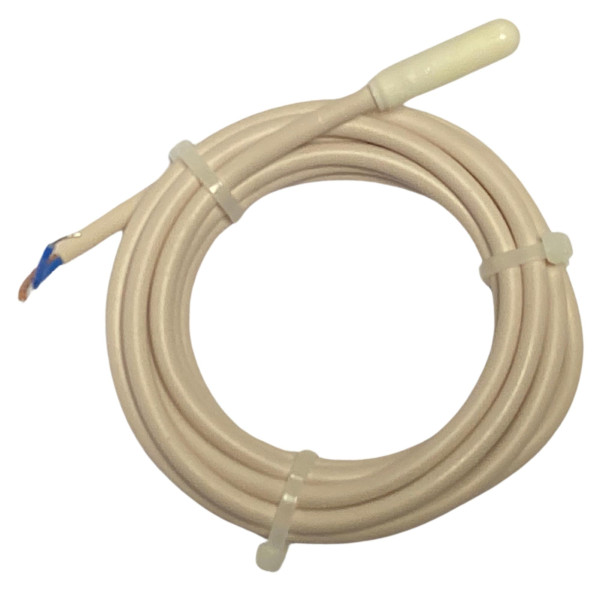

This device can measure and control temperatures of up to 200C when used in conjunction with a model SB59 silicon sensor cable (sold separately).

Note: Sensor cable length can be increased to up to 200 meters by the user by using a PP2 x 24 AWG cable.
