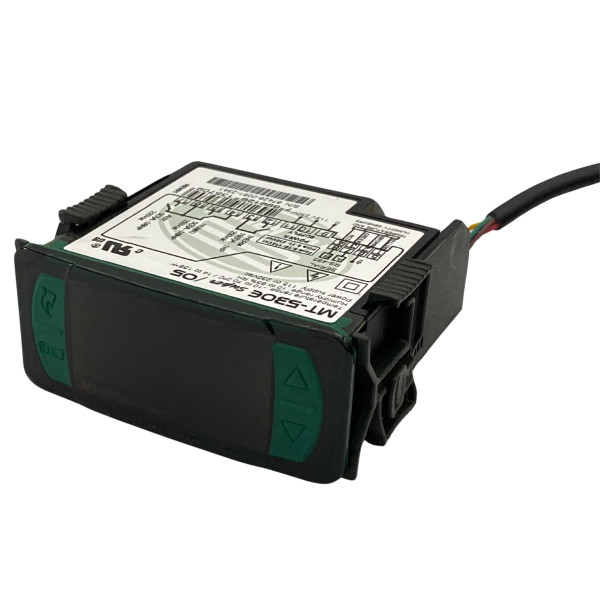

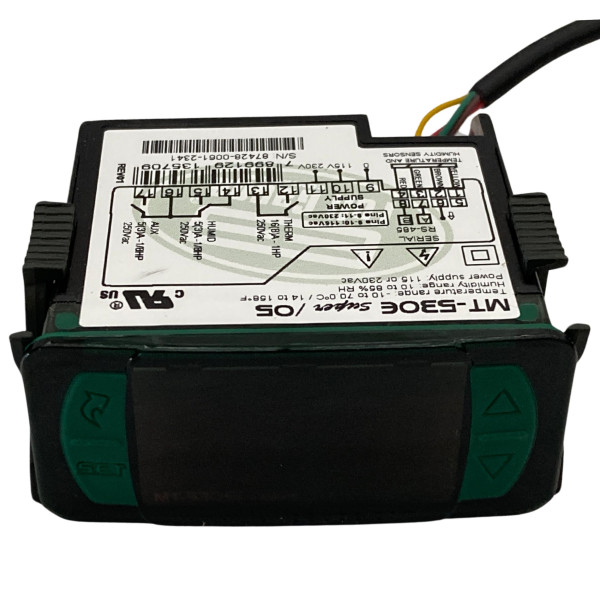

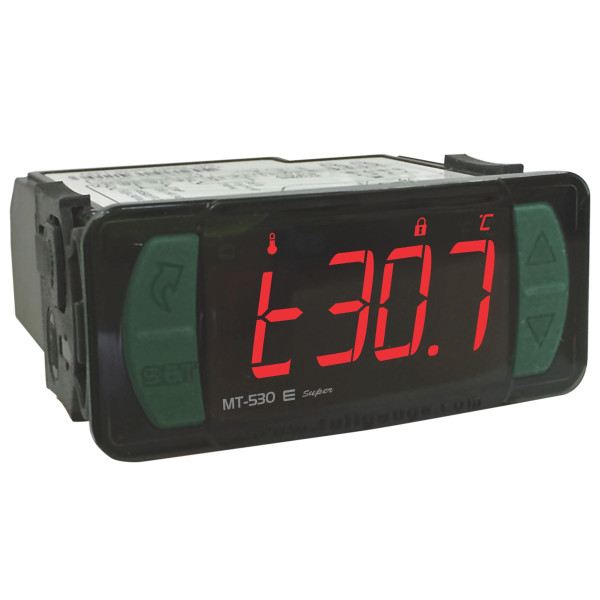

Full Gauge MT-530E Super Electronic Control for Humidity And Temperature. 110/220V Sitrad Compatible
Application example: humidifiers / dehumidifiers, grains drying, laboratories, surgical rooms, climatized cellars, information technology centers, wine cellars, green houses and general ambient air conditioning
Weight : 0.825 LBR
Volume : 0.0156 FTQ
Model : MT-530E super
UPC-EAN : 7899129135709
DIGITAL CONTROLLER AND INDICATOR OF TEMPERATURE AND HUMIDITY WITH SERIAL COMMUNICATION TO SITRAD

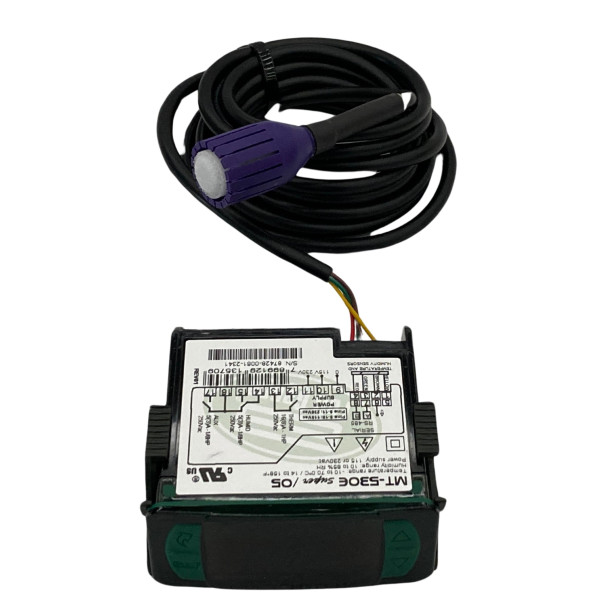

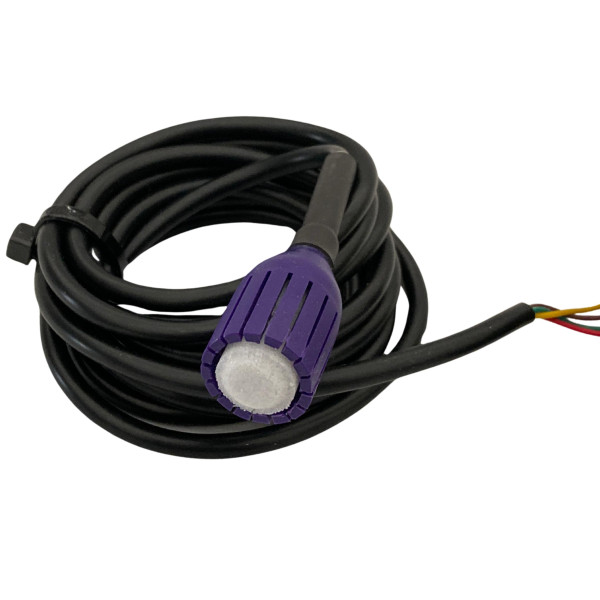

The MT-530E Super has three outputs: one for temperature control, one for humidity control and a third auxiliary output that acts as a second stage temperature control, humidity control, alarm or timer cyclical. This controller is indicated for low and medium relative humidity (10-85% non-condensing). Its temperature sensors and humidity are united in a single bulb, reducing installation space and wiring. It also includes an audible alarm (buzzer) and an intelligent system locking functions, preventing unauthorized people from changing the control parameters. The instrument features a serial communication for connection to Sitrad. Product complies with ULInc. (United States and Canada).
Technical Specifications:
Power supply: 115-230 Vac +/-10% (50/60 Hz)
Control temperature: 14F a 158F +/- 3F (con resolución de 0.1F) / -10C a 70C +/- 1.5C (con resolución de 0.1C)
Operating temperature: 32F hasta 122F (0C a 50C)
Control humidity: 10 to 85% RH +/- 5% RH (with resolution of 0.1% RH)
Operating humidity: 10 to 85% RH (without condensation)

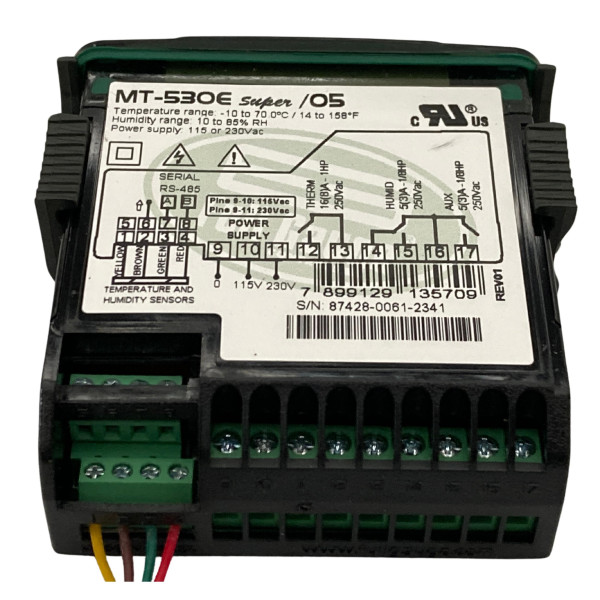

Load Current:
Therm:16(8)A/250Vac 1HP
Humid: 5(3)A/250Vac 1/8HP
Aux : 5(3)A/250Vac 1/8HP
Data sheet
- Product Feature
- Application example: humidifiers / dehumidifiers, grains drying, laboratories, surgical rooms, climatized cellars, information technology centers, wine cellars, green houses and general ambient air conditioning
- Weight
- 0.825 LBR
- Volume
- 0.0156 FTQ
- Model
- MT-530E super
- UPC-EAN
- 7899129135709
