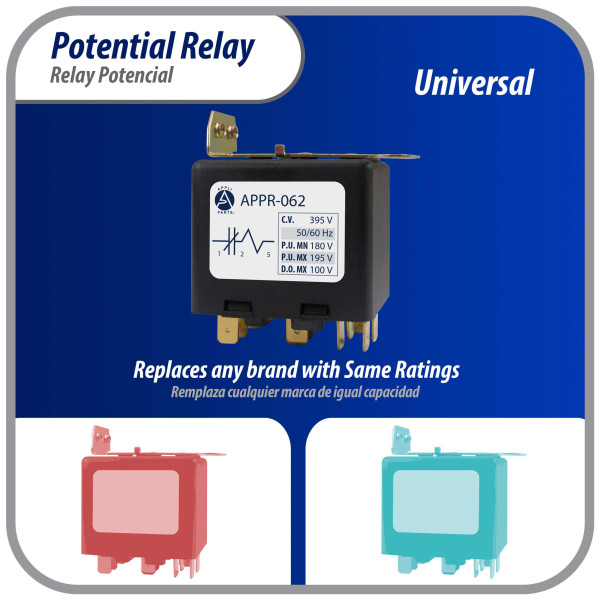

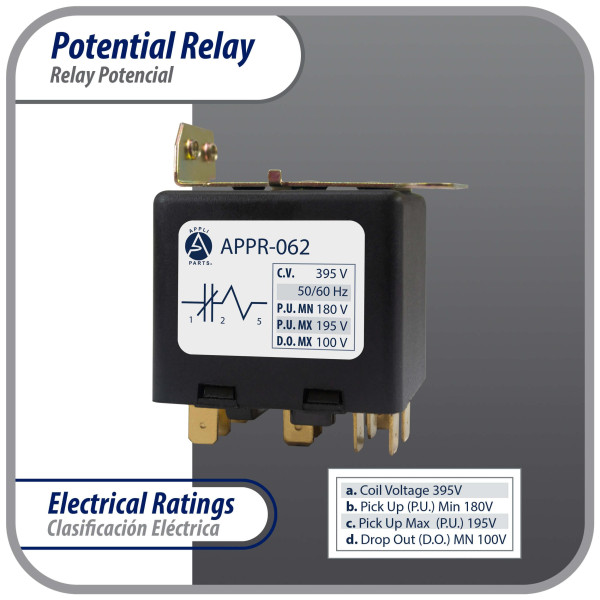

Appli Parts APPR-062 Potential Relay 062, Coil Voltage 395 V, Min Pick up 180 V, Max Pick up 195 V, Max Drop Out 100 V, 50/60 Hz Universal replacement for HVAC and Refrigeration units

A potential relay senses voltage across the start winding. When this voltage reaches a sufficient level, the start capacitor, which is in series with the start winding, must be disconnected from the circuit. When a capacitor start motor runs, a voltage is induced in the start winding.
Potential relays also known as voltage relays are used in capacitor-start capacitor-run (CSR) motors. CSR motors have very high starting torque but run efficiently once started. The potential relay's only function is to assist in starting the motor.
Use: Potential Relays are used to engage and disengage the Start Capacitor once the unit is started. Failing to disconnect the Start capacitor will cause electrical damage

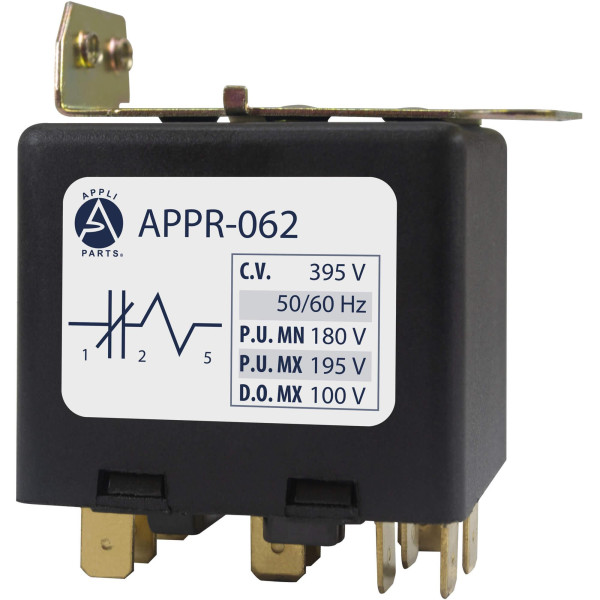

Specs: Coil Voltage is 395V. Minimum Pick Up 180V. Maximum Pick Up 195V. Maximum Drop Out 100V. Can be used in 50/60 Hz applications

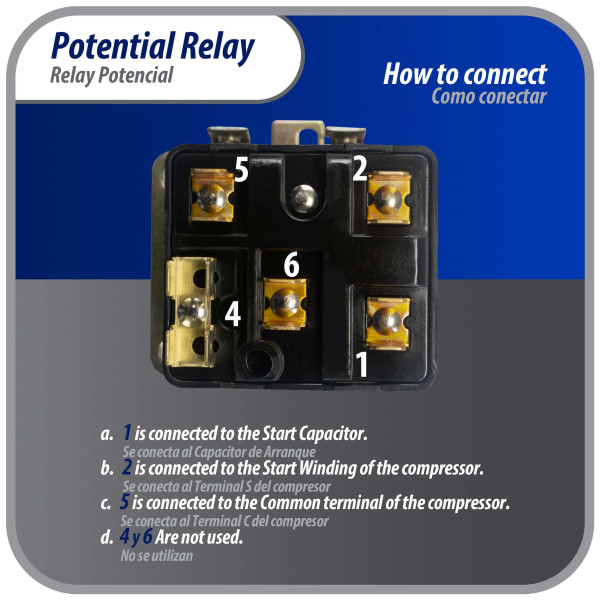

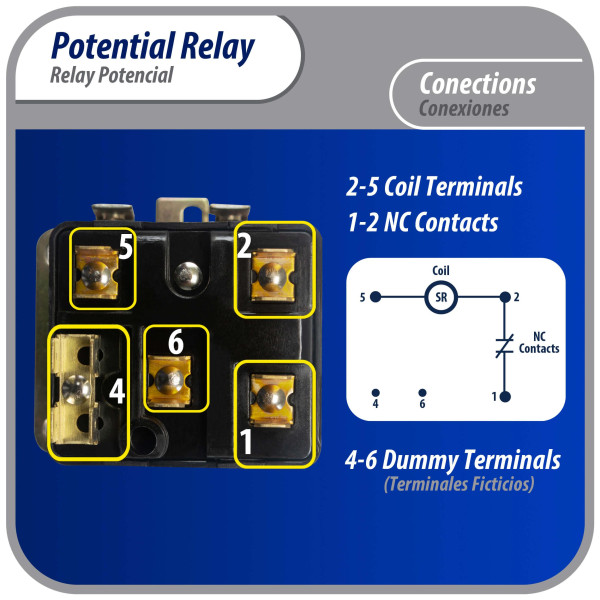

Connections: There are 6 sets of 1/4in connectors. 1-2 Normally Closed Contacts. 2-5 Coil Terminals. 4-6 Dummy Terminals
Universal: Replaces many part numbers and brands with the same electrical specs.
Quality: Products Manufactured following strict standards to comply with OEM specifications
